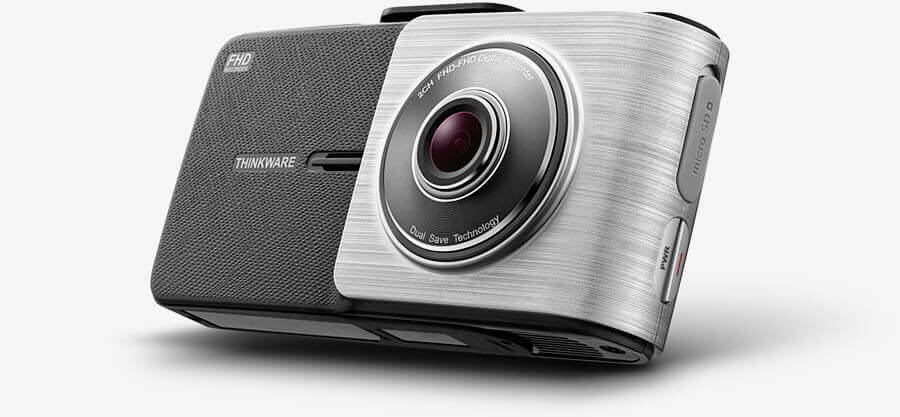

THINKWARE DASH CAM X500

Front & Rear ALL FULL HD

30fps / 2.7” Clear Display / DUAL SAVE® (Internal Back Up Memory) /
Road Safety Warning System / Safety Camera Alert / Advanced Video Clear Technology / Built-in GPS

PEACE OF MIND ON THE ROAD

THINKWARE Dash Cam X500 not only acts as a reliable eyewitness in the case of an incident,
it is also your best protection against insurance frauds and road accidents.


THINKWARE DASH CAM X500 is equipped with the Road Safety Warning System which provides audio and visual alerts for Lane Departure (LDWS), Front Collision (FCWS) and Front Vehicle Departure (FVDW).
It detects road markings and gives voice warnings to the driver
when the vehicle begins to stray from its intended lane or runs into a risk of an imminent crash.


Equip your vehicle with these cutting edge road safety technologies
to add confidence and assurance to your drive:

Front Vehicle Departure Warning (FVDW)
It informs the driver when the vehicle ahead is moving off
Lane Departure Warning System (LDWS)
It alerts the driver when vehicle strays out of its intended lane
Front Collision Warning System (FCWS)
It alerts the driver to maintain a safe distance
when approaching too closely to the vehicle ahead.

Safety Camera Alert

Exclusive safety feature from THINKWARE - The Safety Camera Alert powers THINKWARE DASH CAM to be on continuous alert for photo enforcement locations on your driving routes while simultaneously recording high quality videos.


THINKWARE DASH CAM provides active warning for the following 5 types of road safety cameras.

RED LIGHT WARNING SYSTEM
RED LIGHTWARNING SYSTEM
SPEED CAMERA WARNING SYSTEM
SPEED CAMERA WARNING SYSTEM
RED LIGHT WARNING SYSTEM
RED LIGHT & SPEED CAMERAWARNING SYSTEM
AVERAGE SPEED WARNING SYSTEM
AVERAGE SPEEDWARNING SYSTEM
MOBILE ZONE WARNING SYSTEM
MOBILE ZONEWARNING SYSTEM

*This features may be not available in all countries.

  • RED LIGHT / SPEED CAMERA /
    RED LIGHT & SPEED CAMERA
    WARNING SYSTEM

    With the built-in GPS and safety camera location database, THINKWARE DASH CAM actively alerts the driver of any approaching traffic enforcement cameras including red light or speed cameras to assist in cautious and attentive driving.

    Audio guidance with visual alerts** on the DASH CAM screen notifies and warns the driver of approaching traffic enforcement zones and cameras identified along the route. A two-step warning system is executed to prepare the driver for safe and conscientious driving. The first alert provides the distance to a camera location followed by the second alert which informs the arrival at the actual location of the traffic camera.

    Cultivate safe driving habits with THINKWARE DASH CAM. Start with observing the legal speed limit.

    * Available only on selected models
    ** Available only on selected models with LCD screen

  • AVERAGE SPEED /
    MOBILE ZONE WARNING SYSTEM

    Be confident on the road knowing you are driving within the legal speed limit. THINKWARE DASH CAM alerts you of excessive speeding while notifying all identified speed enforcement camera zones; so you can stay focused on your journey ahead.

    Voice and visual alerts are activated when entering the speed enforcement camera zones. The DASH CAM continuously guides you along the speed enforced stretch of road, thereby assisting you in keeping the speed limit.
    Furthermore, THINKWARE DASH CAM is programmed to recognize the direction you are going and give the appropriate warnings for camera locations relevant to your intended journey.

    Maintain your awareness of all traffic enforcement cameras. Safe driving begins with THINKWARE DASH CAM.

    * The DASH CAM video records both the location and speed information of the drive.
    The recorded footage can be retrieved via the PC viewer where you can easily review and replay your driving routes on the map.

    * The Safety Camera Alert database in THINKWARE DASH CAMs contain a comprehensive coverage of safety cameras across regions including North America (approximately 10,000 camera locations across the region) and the United Kingdom (approximately 18,000 locations).
    The safety camera database is constantly updated to provide the latest and accurate information.

    * Some discrepancies may occur due to addition, removal and/or relocation of traffic enforcement cameras. Be advised that all motorists should observe safe driving practices at all times.

Voice Guidance according to Different Types of Traffic Enforcement
Distance Guide(mile) / Zone Guide
Voice Guidance according to Different Types of Traffic Enforcement
Type Speed Limit Guide(mile)
Speed Cam Speed limit is XX miles per hour
Speed limit is XX km/h
*Speed limit notification is not provided in the case of variable point.
Red light Cam Speed limit notification is not required
Speed & Red light Cam Speed limit is XX miles per hour
Speed limit is XX km/h
Average speed Speed limit is XX miles per hour
Speed limit is XX km/h
Mobile zone None
Speed Limit Guide(mile)
Point Guidance Case
Type Distance Guide(mile) / Zone Guide
Speed Cam Speed camera in XXX mile
Speed camera in XXX yarts
Speed camera in XXX meters
Red light Cam Red light camera in XXX mile
Red light camera in XXX yards
Red light camera in XXX meters
Speed & Red light Cam Speed and red light camera in XXX mile
Speed and red light camera in XXX yards
Speed and red light camera in XXX meters
Average speed Average speed zone
Mobile zone Mobile speed camera zone
*The distance unit in the United States of America is in miles while it is in yards in the United Kingdom. ** Meanwhile, Australia, Singapore, Russia and Canada use meters. **Voice guidance informs the speed limit and distance to the enforcement camera when your vehicle approaches about 400 yards away from the camera location. *After passing the camera, the audio alert ends with a “ding-dong”. (Depending on the location of the camera, the distance to the camera for the audio alert may differ.)
Speed/ Speed & Red Light Cameras
"Speed Camera in 400 yards, Speed Camera Ahead"

- For Speed/ Speed & Red Light cameras, voice guidance informs the driver of the distance to the camera ahead.

Variable Speed Points and Red Light Cameras
- Voice guidance informs only the distance to the camera ahead.
Average Speed Zone
"Average Speed Zone; Speed limit is xx miles per hour."

- Voice guidance informs the driver of entering into Average Speed Zone and its speed limit.
* No pre-alert for approaching Average Speed Zone.
Mobile Zone
What is Mobile Zone?

Mobile Zone is an area set up and operated by police officers with speed guns or automated in-vehicle systems to survey the speed of passing vehicles. Zones may change for locations with high frequency of police appearance.
- Voice guidance informs the driver of entering into Mobile Zone
* Speed limit guidance is not available for all Mobile Speed Camera Zones.
* No pre-alert for approaching Mobile Zone

RECORD CRYSTAL CLEAR,
FULL HD FRONT/REAR IMAGES

With the 1920x1080p Full HD front/rear camera of THINKWARE DASH CAM, you can accurately record movements of object approaching your vehicle.
It can also be used for recording adventures in your journey and share it with family or friends.

Full HD recording in 30 stable frames accurately captures car accident, vandalism, or hit and run incident against your car during parking. It can also be used as an action cam to record the thrills and spills of your action sport such as race driving.

* THINKWARE DASH CAM™ X500's Full HD rear camera is sold separately.

Optimal Image Correction System

You may come across various conditions during your drive that can affect the quality of your recording: direct headlight beams from an opposite vehicle, sudden change in light exposure when going in and out of tunnels, weather changes and driving at night etc. The X500 has a range of image correction processes including WDR, Super Night Vision, Smart AE and other functions that are optimized for the product, ensuring clear and accurate footage under all circumstances.

  • WDR
    (Wide Dynamic Range)

    When your vehicle is under direct sunlight, exiting from a tunnel, or overshadowed by high-rises, objects can appear too dark or bright due to a sudden change in light exposure causing over or under exposed images. X500's WDR removes the excessively bright spots from recorded videos and adjust the overall balance to produce clearer images.

    * The WDR may cause degradation in clarity while correcting the exposure. Please make sure to set it properly before use.

  • Super Night Vision
    (Nighttime Picture Quality Correction)

    When recording with a dash cam in low light environments such as dark alleyways or underground parking lots, it can be difficult to accurately make out and identify information from the video images. X500 has Super Night Vision as a default function, which removes static noise and adjusts brightness as well as colors by sensor.

  • Smart AE
    (Automatic Exposure)

    In moments you are exposed to direct beams of light, it may be difficult to identify crucial aspects of your view such as a license plate, or the color of the opposing vehicle. The X500's Smart AE always ensures ideal exposure and superb image quality in any lighting conditions; so you can identify what you encountered with clarity from the recorded videos.

MOUNTED 2.7 INCH CLEAR DISPLAY

You can view or retrieve real-time as well as recorded videos, change the settings and format your memory card on the LCD screen of the DASH CAM. The 2.7 inch clear display allows you to perform these tasks right in your car without having to connect to a PC, MAC or smart device. The X500 display carries optimal specifications for clear and sharp display of images.

  • FULL 3.5'' TOUCHSCREEN CLD
2M Pixel High-Resolution Image Sensor

2.4 Million Pixel High Resolution Image Sensor

The 2.4 million pixel high resolution SONY Exmor CMOS image sensor significantly improves the quality of not only night time but also day time images. The X500 assures brighter and clearer resolution of all images captured.

140˚ Wide Angle View

140 Degree Wide Angle

The high precision optical glass lens records all surrounding images around your car without missing a movement, while minimizing distortion. The 140 degree wide angle lens records both front and side situations of the car.

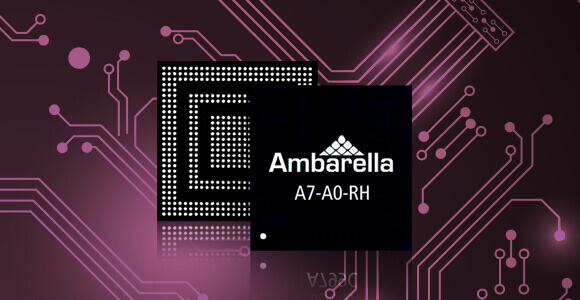

Strong Processor

Strong Processor, Ambarella A7

The X500 utilizes the best CPU with the equal high specification applied in sports cam for smart performance. It minimizes power consumption while delivering optimal performance. As a globally competitive dash cam, the X500 reliably supports major functions: Front/Rear Full HD Ultra-high Quality Recording, Dual Save, WDR, Super Night Vision, Smart AE and others.

Access Driving Information through GPS

Comprehensive Driving Data through Built-in GPS

Using the GPS data, the X500 can pinpoint the precise location and routes of the vehicle with its driving speed on the map. The GPS helps you to accurately assess the status of the accident by providing you with the vehicle speed, the direction of collision and the severity of impact. The video recording feature not only stores driving footages, but also can be used to recall your holiday travel routes with family and friends. This feature can be useful for novice drivers as it may help them select their most familiar and regular routes for their drive.
* The X500 comes with the built-in GPS.

THE NEW STANDARD
FOR DASH CAMS: dualave

Dual Save technology is specially designed to save recorded footage in both Micro SD and NAND Flash Memory when a certain level of impact is detected. This is particularly useful if the Micro SD card is removed or damaged in the aftermath of a collision. Because Dual Save Technology also saves footage in the NAND Flash Memory, there is no need to worry about your data getting lost or damaged.


You can check the video saved in the NAND Flash Memory immediately on the X500 Clear Display or copy it to the Micro SD Card and review it later on the PC or MAC viewer.

* Dual Save Technology is activated when specific level of impact is detected as long as it is connected to a power supply (The impact detection threshold can be adjusted according to user preference).
Accelerometer G-Sensor

Accelerometer G-Sensor

The X, Y, Z axes of the G sensor allow you to measure fluctuations in gravity, speed or rotation. You can figure out the axial movement and impact of an accident at a glance.

Easy-to-Use, Highly Functional Viewer

Viewer for Clear and Precise Control of Videos

The intuitive and simple-to-use interface of THINKWARE DASH CAM allows you an easy and convenient viewing of your recorded videos. Through the PC or Mac viewer, you can playback or download recorded videos along with your route history and speed record. You can also change the DASH CAM settings, format the memory card, or install updates with just a few clicks on the viewer.

SUPPORTS VARIOUS RECORDING MODES AND AUTO MODE SWITCHING

THINKWARE DASH CAM X500 supports various recording modes depending on the status of your car whether it is in driving or parking mode (continuous recording, incident recording and motion detection recording). Using the hard wiring power cable, which is directly connected to the power system of the vehicle, the device automatically switches between continuous recording mode and parking mode without you turning the power on/off.

Various Recording Modes and Automatic Switch between Modes
  • Continuous Recording Mode
    Continuous Recording

    Continuous recording mode powers on automatically when you start the vehicle engine. The DASH CAM continuously stores all the footages as one-minute video files while driving. There is no need to charge or replace the battery.

  • Incident Recording Mode
    Incident Recording

    Using the gyro sensor, which is not included in an action cam, you can detect impacts to your car while driving or parking and record them separately. The camera constantly records images when the vehicle is in motion. In case of an incident, it records and safely stores the footage from 10 seconds prior to the impact.

  • Automatic Switch between Parking and Continuous Recording Modes
    Motion Detection Recording

    If an object passes in front of your vehicle, the DASH CAM automatically detects and starts recording the motion. Without additional change of setting, human motion approaching the parked vehicle is detected and recorded automatically, protecting it from possible vandalism or theft.

  • Manual Recording
    Manual Recording

    While driving or parking, you can immediately start manual recording by just pressing a button. Use this feature to capture all significant moments such as a friendly deer approaching your car, or a dangerous road rage scenario as useful evidence.

  • Automatic Switch between Parking and Continuous Recording Modes
    Automatic Switching between Parking Mode and Continuous Mode

    After the car engine stops, the DASH CAM assesses the voltage condition of the car and automatically switches to parking mode. In this mode, motion detection recording is activated while incident recording is maintained. When you restart the engine in parking mode, the DASH CAM automatically switches to continuous recording mode without a need to turn on the device.

    * If you mount the continuous power cable, it supports automatic switching to parking mode and motion detection recording function.

RECORDING TIME

THINKWARE DASH CAM allows you to configure the default recording time frame. Depending on the battery condition and the weather,
you can adjust it from 1 hour up to 48 hours, for needed protection of your car.

Recording time
Video Quality Full HD 30fps Full HD + Full HD 30fps
Capacity 16 GB 124 min 62 min
32 GB 248 min 124 min
64 GB 496 min 248 min
* Memory space for the X500 can expand up to 64GB.
* The lifetime of Micro SD Memory Card may vary depending on the usage environment. Its warranty period is six months.

SIMPLE INSTALLATION AND INTUITIVE CONTROLS

Installing the THINKWARE DASH CAM X500 involves simply connecting a few connection ports followed by pressing a few buttons.
All required accessories are provided with intuitive instructions on their controls; so you can be all set to go in no time.

Easy Secure Mounting
Easy Mounting and Firm Fixing

Use the 3M tape for easy mounting of the DASH CAM. The rear camera rotates up to 360 degrees with easy installation, regardless of the model and interior items (indoor curtains, etc.) of vehicle.

* Advantages of the 3M tape

The camera may vibrate when installed with a suction cup. On the other hand, the use of 3M tape firmly secures the camera to the screen without generating vibration. While a suction cup can obstruct driver’s view, the 3M tape is highly discreet, providing a clear view without obstruction. In the event of sudden impact, the device mounted on a suction cup may drop or move around. However, the 3M adhesive tape firmly holds the device in its place regardless of impact and varying temperature: high or low. While minimizing reflections from the car window, the 3M tape allows secure installation of the DASH CAM on a desired spot.

Self-Protection Shutdown against High Temperature
Automatic Temperature Sensitive Shutdown Protection

Specially designed heat-discharging structure and high-temperature-blocking functions safely protect the device and its stored images under strong sunlight. In case the temperature rises beyond certain level, the SELF-PROTECTION SHUTDOWN function switches off the device automatically to protect the stored video data.

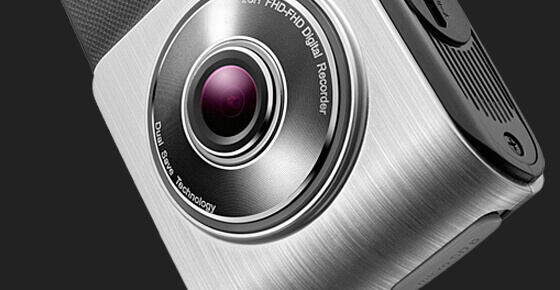

Fail-Safe Recording
FAIL-SAFE RECORDING

In the event that the power gets disconnected after an accident, fail-safe recording of the X500 activates the Super Capacitor for backup power to ensure safe storage of any recording in progress; so you can be assured that your valuable data will be securely stored under any circumstance.

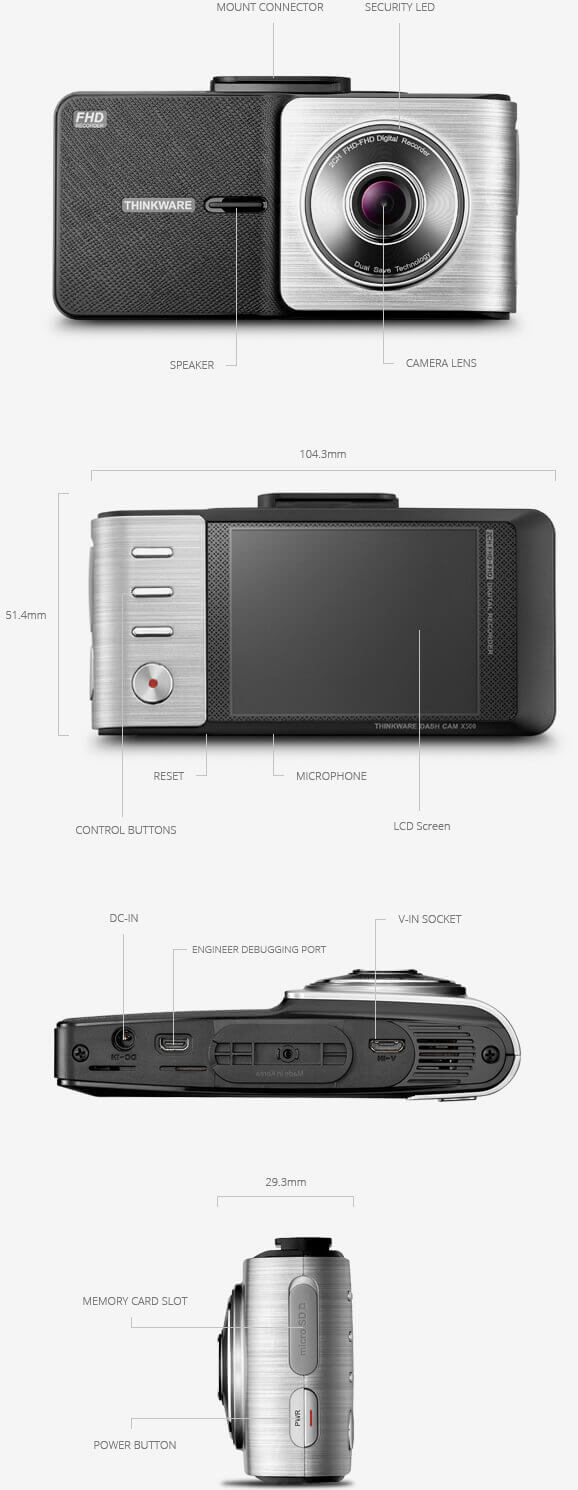

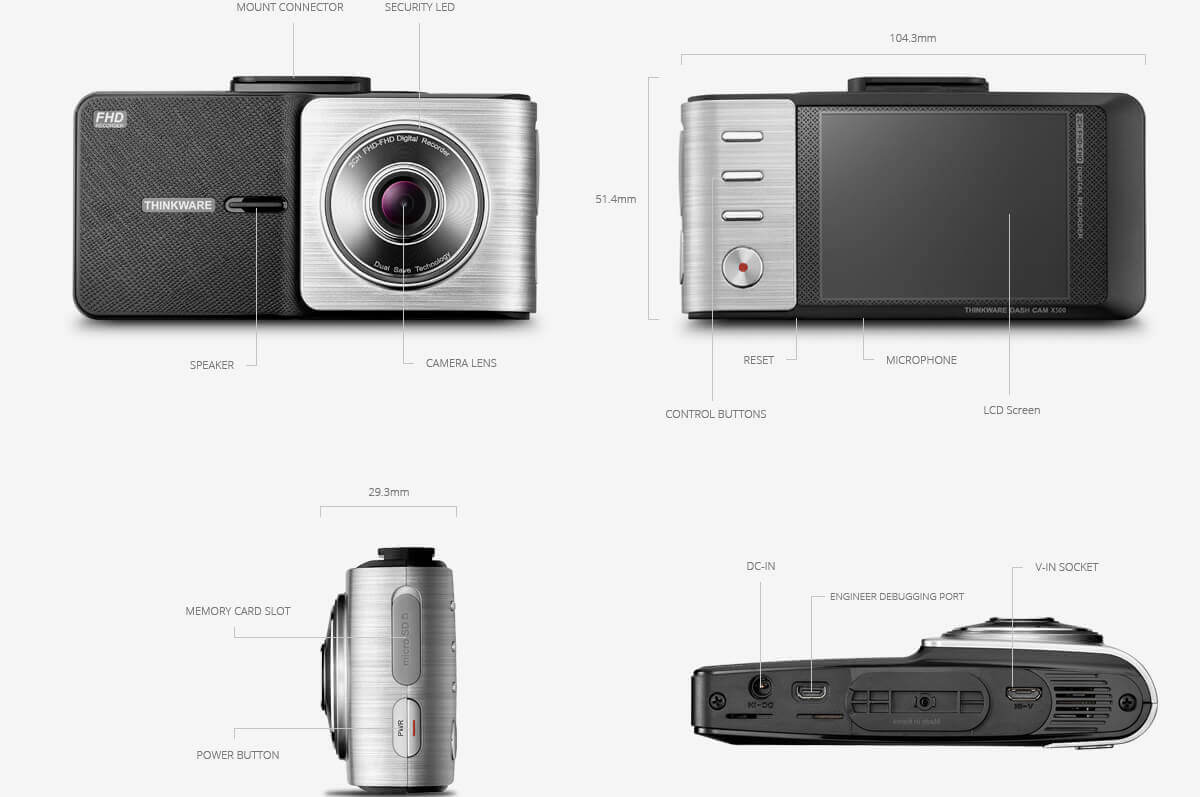

PRODUCT SPECIFICATIONS

PRODUCT SPECIFICATIONS PRODUCT SPECIFICATIONS
GENERAL SPECIFICATIONS
General Specifications
Dimension 104.3 x 51.4 x 29.3 mm / 4.1 x 2.02 x 1.15 inches Weight 111 g(Excluding microSD) / 0.24 lbs
Package Main Dash Cam Unit, Mount with 3M tape (1ea), Car Charger, Adhesive Cable Holder (5ea), Micro SD memory card with adapter (consumable),
USB Micro SD card reader, Quick Start Guide / Warranty / User Manual (stored in the Micro SD card)
DETAILED SPECIFICATIONS
Detailed Specifications
Camera 2.4M Pixels, 1/2.9" (SONY CMOS Image sensor)
Display Panel 2.7" Clear Display (320x240)
Viewing Angle Approximately 140° (diagonally)
Video ALL Full HD (1920X1080) for front & rear view camera when connected
Capacity Micro SD Card 16GB / 32GB / 64GB UHS-I
Recording Modes Continuous Recording Mode, Incident Recording Mode, Manual Recording Mode, Parking Surveillance Recording Mode, Capturing Still Image, Audio Recording
Acceleration Sensor 3-Axis Acceleration G-Sensor (3D, ±4G)
GPS Built-in GPS (Glonass supported)
Power Input Voltage: DC 12/24V (Max 35V), Power Cable Port x 1 (3.5pi) / Power Consumption: 5.3W (mean) - 2ch,30fp , 3.5W (mean) - 1ch,30fp / Super Capacitor
Interface 1 x Video-IN (micro USB), DC-IN, Micro SD slot
ETC Front Security LED
WHY YOU SHOULD CHOOSE THINKWARE DASH CAM

CHOOSE
THINKWARE DASH CAM

  • Rigorous Quality Control and Testing
  • Superb Video Quality
  • World's First Design Award Grand Slam
  • No. 1 Brand in the Market
    • PEACE OF MIND ON THE ROAD

      THINKWARE DASH CAM X500 is equipped with the Road Safety Warning System which provides audio and visual alerts for Lane Departure (LDWS), Front Collision (FCWS) and Front Vehicle Departure (FVDW). It detects road markings and gives voice warnings to the driver when the vehicle begins to stray from its intended lane or runs into a risk of an imminent crash.

      Equip your vehicle with these cutting edge road safety technologies to add confidence and assurance to your drive:

      Front Vehicle Departure Warning (FVDW)
      It informs the driver when the vehicle ahead is moving off
      Lane Departure Warning System (LDWS)
      It alerts the driver when vehicle strays out of its intended lane
      Front Collision Warning System (FCWS)
      It alerts the driver to maintain a safe distance
      when approaching too closely to the vehicle ahead.

      Safety Camera Alert

      Exclusive safety feature from THINKWARE - The Safety Camera Alert powers THINKWARE DASH CAM to be on continuous alert for
      photo enforcement locations on your driving routes while simultaneously recording high quality videos.

      THINKWARE DASH CAM provides active warning for the following 5 types of road safety cameras.

      RED LIGHT WARNING SYSTEM
      RED LIGHT
      WARNING SYSTEM
      SPEED CAMERA WARNING SYSTEM
      SPEED CAMERA
      WARNING SYSTEM
      RED LIGHT & SPEED CAMERA WARNING SYSTEM
      RED LIGHT & SPEED CAMERA
      WARNING SYSTEM
      AVERAGE SPEED WARNING SYSTEM
      AVERAGE SPEED
      WARNING SYSTEM
      MOBILE ZONE WARNING SYSTEM
      MOBILE ZONE
      WARNING SYSTEM

      *This features may be not available in all countries.

      • RED LIGHT / SPEED CAMERA / RED LIGHT & SPEED CAMERA
        WARNING SYSTEM

        With the built-in GPS and safety camera location database, THINKWARE DASH CAM actively alerts the driver of any approaching traffic enforcement cameras including red light or speed cameras to assist in cautious and attentive driving.

        Audio guidance with visual alerts** on the DASH CAM screen notifies and warns the driver of approaching traffic enforcement zones and cameras identified along the route. A two-step warning system is executed to prepare the driver for safe and conscientious driving. The first alert provides the distance to a camera location followed by the second alert which informs the arrival at the actual location of the traffic camera.

        Cultivate safe driving habits with THINKWARE DASH CAM. Start with observing the legal speed limit.

        * Available only on selected models
        ** Available only on selected models with LCD screen

      • AVERAGE SPEED / MOBILE ZONE WARNING SYSTEM

        Be confident on the road knowing you are driving within the legal speed limit. THINKWARE DASH CAM alerts you of excessive speeding while notifying all identified speed enforcement camera zones; so you can stay focused on your journey ahead.

        Voice and visual alerts are activated when entering the speed enforcement camera zones. The DASH CAM continuously guides you along the speed enforced stretch of road, thereby assisting you in keeping the speed limit.
        Furthermore, THINKWARE DASH CAM is programmed to recognize the direction you are going and give the appropriate warnings for camera locations relevant to your intended journey.

        Maintain your awareness of all traffic enforcement cameras. Safe driving begins with THINKWARE DASH CAM.


        * The DASH CAM video records both the location and speed information of the drive.The recorded footage can be retrieved via the PC viewer where you can easily review and replay your driving routes on the map.

        * The Safety Camera Alert database in THINKWARE DASH CAMs contain a comprehensive coverage of safety cameras across regions including North America (approximately 10,000 camera locations across the region) and the United Kingdom (approximately 18,000 locations). The safety camera database is constantly updated to provide the latest and accurate information.

        * Some discrepancies may occur due to addition, removal and/or relocation of traffic enforcement cameras. Be advised that
        all motorists should observe safe driving practices at all times.

    • Voice Guidance according to Different Types of Traffic Enforcement
      Voice Guidance according to Different Types of Traffic Enforcement
      Type Distance Guide (mile) / Zone Guide Speed Limit Guide (mile)
      Speed Cam Speed camera in XXX mile
      Speed camera in XXX yards
      Speed camera in XXX meters
      Speed limit is XX miles per hour
      Speed limit is XX km/h
      *Speed limit notification is not provided in the case of variable point.
      Red light Cam Red light camera in XXX mile
      Red light camera in XXX yards
      Red light camera in XXX meters
      Speed limit notification is not required
      Speed & Red light Cam Speed and red light camera in XXX mile
      Speed and red light camera in XXX yards
      Speed and red light camera in XXX meters
      Speed limit is XX miles per hour
      Speed limit is XX km/h
      Average speed Average speed zone Speed limit is XX miles per hour
      Speed limit is XX km/h
      Mobile zone Mobile speed camera zone None
      *The distance unit in the United States of America is in miles while it is in yards in the United Kingdom. ** Meanwhile, Australia, Singapore, Russia and Canada use meters. **Voice guidance informs the speed limit and distance to the enforcement camera when your vehicle approaches about 400 yards away from the camera location. *After passing the camera, the audio alert ends with a “ding-dong”. (Depending on the location of the camera, the distance to the camera for the audio alert may differ.)
      Speed/ Speed & Red Light Cameras
      "Speed Camera in 400 yards, Speed Camera Ahead"

      - For Speed/ Speed & Red Light cameras, voice guidance informs the driver of the distance to the camera ahead.

      Variable Speed Points and Red Light Cameras

      - Voice guidance informs only the distance to the camera ahead.

      Average Speed Zone
      "Average Speed Zone; Speed limit is xx miles per hour."

      - Voice guidance informs the driver of entering into Average Speed Zone and its speed limit.
      * No pre-alert for approaching Average Speed Zone.
      Mobile Zone
      What is Mobile Zone?

      Mobile Zone is an area set up and operated by police officers with speed guns or automated in-vehicle systems to survey the speed of passing vehicles. Zones may change for locations with high frequency of police appearance.
      - Voice guidance informs the driver of entering into Mobile Zone
      * Speed limit guidance is not available for all Mobile Speed Camera Zones.
      * No pre-alert for approaching Mobile Zone.
    • RECORD CRYSTAL CLEAR,
      FULL HD FRONT/REAR IMAGES

      With the 1920x1080p Full HD front/rear camera of THINKWARE DASH CAM, you can accurately record movements of object approaching your vehicle.
      It can also be used for recording adventures in your journey and share it with family or friends.

      Full HD recording in 30 stable frames accurately captures car accident, vandalism, or hit and run incident against your car during parking. It can also be used as an action cam to record the thrills and spills of your action sport such as race driving.

      * THINKWARE DASH CAM™ X500's Full HD rear camera is sold separately.

    • Optimal Image Correction System

      You may come across various conditions during your drive that can affect the quality of your recording: direct headlight beams from an opposite vehicle, sudden change in light exposure when going in and out of tunnels, weather changes and driving at night etc.
      The X500 has a range of image correction processes including WDR, Super Night Vision, Smart AE and other functions that are optimized for the product, ensuring clear and accurate footage under all circumstances.

      • WDR
        (Wide Dynamic Range)

        When your vehicle is under direct sunlight, exiting from a tunnel, or overshadowed by high-rises, objects can appear too dark or bright due to a sudden change in light exposure causing over or under exposed images. X500's WDR removes the excessively bright spots from recorded videos and adjust the overall balance to produce clearer images.

        * The WDR may cause degradation in clarity while correcting the exposure. Please make sure to set it properly before use.

      • Super Night Vision
        (Nighttime Picture Quality Correction)

        When recording with a dash cam in low light environments such as dark alleyways or underground parking lots, it can be difficult to accurately make out and identify information from the video images. X500 has Super Night Vision as a default function, which removes static noise and adjusts brightness as well as colors by sensor.

      • Smart AE
        (Automatic Exposure)

        In moments you are exposed to direct beams of light, it may be difficult to identify crucial aspects of your view such as a license plate, or the color of the opposing vehicle. The X500's Smart AE always ensures ideal exposure and superb image quality in any lighting conditions; so you can identify what you encountered with clarity from the recorded videos.

      MOUNTED 2.7 INCH CLEAR DISPLAY

      You can view or retrieve real-time as well as recorded videos, change the settings and format your memory card on the LCD screen of the DASH CAM. The 2.7 inch clear display allows you to perform these tasks right in your car without having to connect to a PC, MAC or smart device. The X500 display carries optimal specifications for
      clear and sharp display of images.

      • FULL 3.5'' TOUCHSCREEN CLD
      • 2M Pixel High-Resolution Image Sensor

        2.4 Million Pixel High Resolution Image Sensor

        The 2.4 million pixel high resolution SONY Exmor CMOS image sensor significantly improves the quality of not only night time but also day time images. The X500 assures brighter and clearer resolution of all images captured

      • 140˚ Wide Angle View

        140 Degree Wide Angle


        The high precision optical glass lens records all surrounding images around your car without missing a movement, while minimizing distortion. The 140 degree wide angle lens records both front and side situations of the car.

      • Strong Processor

        Strong Processor, Ambarella A7

        The X500 utilizes the best CPU with the equal high specification applied in sports cam for smart performance. It minimizes power consumption while delivering optimal performance. As a globally competitive dash cam, the X500 reliably supports major functions: Front/Rear Full HD Ultra-high Quality Recording, Dual Save, WDR, Super Night Vision, Smart AE and others.

      • Access Driving Information through GPS

        Comprehensive Driving Data through Built-in GPS

        Using the GPS data, the X500 can pinpoint the precise location and routes of the vehicle with its driving speed on the map. The GPS helps you to accurately assess the status of the accident by providing you with the vehicle speed, the direction of collision and the severity of impact. The video recording feature not only stores driving footages, but also can be used to recall your holiday travel routes with family and friends. This feature can be useful for novice drivers as it may help them select their most familiar and regular routes for their drive.
        * The X500 comes with the built-in GPS.

    • THE NEW STANDARD
      FOR DASH CAMS: dualave

      Dual Save technology is specially designed to save recorded footage in both Micro SD and NAND Flash Memory when a certain level of impact is detected. This is particularly useful if the Micro SD card is removed or damaged in the aftermath of a collision. Because Dual Save Technology also saves footage in the NAND Flash Memory, there is no need to worry about your data getting lost or damaged. You can check the video saved in the NAND Flash Memory immediately on the X500 Clear Display or copy it to the Micro SD Card and review it later on the PC or MAC viewer.

      * Dual Save Technology is activated when specific level of impact is detected as long as it is connected to a power supply (The impact detection threshold can be adjusted according to user preference).
      • Accelerometer G-Sensor

        Accelerometer G-Sensor

        The X, Y, Z axes of the G sensor allow you to measure fluctuations in gravity, speed or rotation. You can figure out the axial movement and impact of an accident at a glance.

      • Easy-to-Use, Highly Functional Viewer

        Viewer for Clear and Precise Control of Videos

        The intuitive and simple-to-use interface of THINKWARE DASH CAM allows you an easy and convenient viewing of your recorded videos. Through the PC or Mac viewer, you can playback or download recorded videos along with your route history and speed record. You can also change the DASH CAM settings, format the memory card, or install updates with just a few clicks on the viewer.

    • SUPPORTS VARIOUS RECORDING MODES AND AUTO MODE SWITCHING

      THINKWARE DASH CAM X500 supports various recording modes depending on the status of your car whether it is in driving or parking mode (continuous recording, incident recording and motion detection recording).
      Using the hard wiring power cable, which is directly connected to the power system of the vehicle, the device automatically switches between continuous recording mode and parking mode without you turning the power on/off.

      Various Recording Modes and Automatic Switch between Modes
      • Continuous Recording Mode
        Continuous Recording

        Continuous recording mode powers on automatically when you start the vehicle engine. The DASH CAM continuously stores all the footages as one-minute video files while driving. There is no need to charge or replace the battery.

      • Incident Recording Mode
        Incident Recording

        Using the gyro sensor, which is not included in an action cam, you can detect impacts to your car while driving or parking and record them separately. The camera constantly records images when the vehicle is in motion. In case of an incident, it records and safely stores the footage from 10 seconds prior to the impact.

      • Automatic Switch between Parking and Continuous Recording Modes
        Motion Detection Recording

        If an object passes in front of your vehicle, the DASH CAM automatically detects and starts recording the motion. Without additional change of setting, human motion approaching the parked vehicle is detected and recorded automatically, protecting it from possible vandalism or theft.

      • Manual Recording
        Manual Recording

        While driving or parking, you can immediately start manual recording by just pressing a button. Use this feature to capture all significant moments such as a friendly deer approaching your car, or a dangerous road rage scenario as useful evidence.

      • Automatic Switch between Parking and Continuous Recording Modes
        Automatic Switching between Parking Mode and Continuous Mode

        After the car engine stops, the DASH CAM assesses the voltage condition of the car and automatically switches to parking mode. In this mode, motion detection recording is activated while incident recording is maintained. When you restart the engine in parking mode, the DASH CAM automatically switches to continuous recording mode without a need to turn on the device.

        * If you mount the continuous power cable, it supports automatic switching to parking mode and motion detection recording function.
    • RECORDING TIME

      THINKWARE DASH CAM allows you to configure the default recording time frame. Depending on the battery condition and the weather,
      you can adjust it from 1 hour up to 48 hours, for needed protection of your car.

      Recording time
      Video Quality Full HD 30fps Full HD + Full HD 30fps
      Capacity 16 GB 124 min 62 min
      32 GB 248 min 124 min
      64 GB 496 min 248 min
      * Memory space for the X500 can expand up to 64GB.
      * The lifetime of Micro SD Memory Card may vary depending on the usage environment. Its warranty period is six months.
    • SIMPLE INSTALLATION AND INTUITIVE CONTROLS

      Installing the THINKWARE DASH CAM X500 involves simply connecting a few connection ports followed by pressing a few buttons. All required accessories are provided with intuitive instructions on their controls; so you can be all set to go in no time.

      • Easy Secure Mounting
        Easy Mounting and Firm Fixing

        Use the 3M tape for easy mounting of the DASH CAM. The rear camera rotates up to 360 degrees with easy installation, regardless of the model and interior items (indoor curtains, etc.) of vehicle.

        * Advantages of the 3M tape

        The camera may vibrate when installed with a suction cup. On the other hand, the use of 3M tape firmly secures the camera to the screen without generating vibration. While a suction cup can obstruct driver’s view, the 3M tape is highly discreet, providing a clear view without obstruction. In the event of sudden impact, the device mounted on a suction cup may drop or move around. However, the 3M adhesive tape firmly holds the device in its place regardless of impact and varying temperature: high or low. While minimizing reflections from the car window, the 3M tape allows secure installation of the DASH CAM on a desired spot.

      • Self-Protection Shutdown against High Temperature
        Automatic Temperature Sensitive Shutdown Protection

        Specially designed heat-discharging structure and high-temperature-blocking functions safely protect the device and its stored images under strong sunlight. In case the temperature rises beyond certain level, the SELF-PROTECTION SHUTDOWN function switches off the device automatically to protect the stored video data.

      • Fail-Safe Recording
        FAIL-SAFE RECORDING

        In the event that the power gets disconnected after an accident, fail-safe recording of the X500 activates the Super Capacitor for backup power to ensure safe storage of any recording in progress; so you can be assured that your valuable data will be securely stored under any circumstance.

    • PRODUCT SPECIFICATIONS

      PRODUCT SPECIFICATIONS PRODUCT SPECIFICATIONS
      GENERAL SPECIFICATIONS
      General Specifications
      Dimension 104.3 x 51.4 x 29.3 mm / 4.1 x 2.02 x 1.15 inches Weight 111 g(Excluding microSD) / 0.24 lbs
      Package Main Dash Cam Unit, Mount with 3M tape (1ea), Car Charger, Adhesive Cable Holder (5ea), Micro SD memory card with adapter (consumable),
      USB Micro SD card reader, Quick Start Guide / Warranty / User Manual (stored in the Micro SD card)
      DETAILED SPECIFICATIONS
      Detailed Specifications
      Camera 2.4M Pixels, 1/2.9" (SONY CMOS Image sensor)
      Display Panel 2.7" Clear Display (320x240)
      Viewing Angle Approximately 140° (diagonally)
      Video ALL Full HD (1920X1080) for front & rear view camera when connected
      Capacity Micro SD Card 16GB / 32GB / 64GB UHS-I
      Recording Modes Continuous Recording Mode, Incident Recording Mode, Manual Recording Mode, Parking Surveillance Recording Mode, Capturing Still Image, Audio Recording
      Acceleration Sensor 3-Axis Acceleration G-Sensor (3D, ±4G)
      GPS Built-in GPS (Glonass supported)
      Power Input Voltage: DC 12/24V (Max 35V), Power Cable Port x 1 (3.5pi) / Power Consumption: 5.3W (mean) - 2ch,30fp , 3.5W (mean) - 1ch,30fp / Super Capacitor
      Interface 1 x Video-IN (micro USB), DC-IN, Micro SD slot
      ETC Front Security LED
    • WHY YOU SHOULD CHOOSE THINKWARE DASH CAM

      CHOOSE
      THINKWARE DASH CAM

      • Rigorous Quality Control and Testing
      • Superb Video Quality
      • World's First Design Award Grand Slam
      • No. 1 Brand in the Market
