THINKWARE DASH CAM X300

1080P FULL HD & HD 2CH / 30fps / 3.5” Touch LCD / DUAL SAVE

High Definition Video Quality

With a 1920*1080p Full HD camera, the X300 records videos with crystal clear resolution capturing crucial details of any incidents on and off the road.

The X300 records at 30fps without dropping a single frame; so you can rely on it to capture every event of your commute with accuracy, be it a light fender bender or a hit-and-run incident.

video size img video size img

3.5" LCD Touchscreen Monitor

The 3.5” touchscreen LCD viewfinder of the X300 allows you instant viewing of the footage immediately after it has been recorded, instead of feeling anxious through a long drive until you have an access to the viewer on a computer screen. The touchscreen viewfinder also assists you in the set up process of the DASH CAM.

  • FULL 3.5'' TOUCHSCREEN CLD
2M Pixel High-Resolution Image Sensor

2M Pixel High-Resolution Image Sensor

The 2M pixel high-resolution CMOS sensor significantly improves the video quality even at night. With the X300, all your footages appear sharp and crystal clear.

140˚ Wide Angle View

140˚ Wide Angle View

The x300 has a 140˚ wide viewing angle for maximum visibility, capturing a wider view of the roads with effectively reduced blind spots.

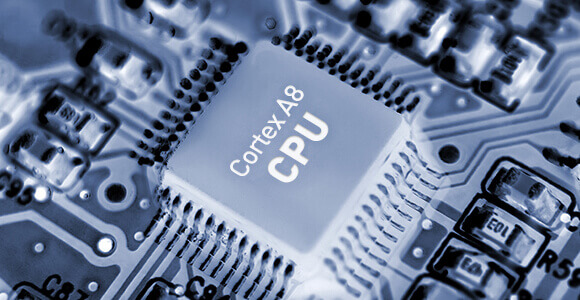

Fast Processor

Fast Processor

A high performance Cortex A8 core CPU ensures a stable and uninterrupted performance of the X300 while it carries out various tasks. The A8 processor has been developed as a high-end processor and extensively tested to be proven effective in many applications including tablet computers and smartphones.

Access Driving Information through GPS

Comprehensive Driving Data through GPS

With GPS, THINKWARE DASH CAM X300 records the driving speed and routes of your vehicle as well as its location on the map. You can find out the speed and direction of your vehicle at the moment of collision in addition to the direction and severity of the collision for more comprehensive and accurate assessment of the situation. This feature is also useful for student drivers who are new on the road as it may help them select the most familiar and regular routes for their drive. The features mentioned above are available only with the built-in GPS or using the GPS accessory sold separately.

THINKWARE Proprietary Technology:dualave

The Dual Save technology is specially designed to save recorded footages in both the Micro SD card and the built-in internal memory in incident recording mode. It functions as an additional safeguard against potential loss or damage of any crucial footage in the aftermath of a severe collision. In the event that the memory card gets damaged, the Dual Save Technology guarantees a backup copy of the video data in the internal memory.

* The Dual Save Technology is activated when specific level of impact is detected. (The impact sensitivity is adjustable using the PC / Mac Viewer.)

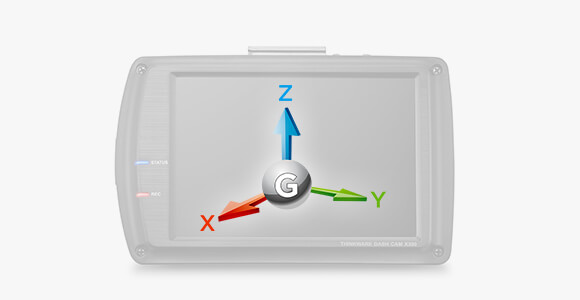

Accelerometer G-Sensor

Accelerometer G-Sensor

The Active Impact Monitoring System utilizes a 3-axis G-Sensor to continuously monitor any impact to your vehicle, and triggers incident recording mode whenever an impact is registered.

Easy-to-Use, Highly Functional Viewer

Easy-to-Use, Highly Functional Viewer

You can retrieve the recorded videos containing time, speed, and location data on your PC or Mac computer using the THINKWARE PC Viewer. You may also use the application to configure the device, as well as have an access to firmware upgrades.

Various Autonomous Recording Modes

THINKWARE DASH CAM X300 supports various recording modes which you can choose from according to your needs: Continuous Recording, Incident Recording, Motion Detection Recording, and Manual Recording.

Various Recording Modes and Automatic Switch between Modes
  • Continuous Recording Mode
    Continuous Recording Mode

    Continuous Recording Mode is activated automatically when you start the vehicle engine. Recorded videos are saved in one-minute segments with an auto-looping mechanism.

  • Incident Recording Mode
    Incident Recording Mode

    The Active Impact Monitoring System automatically stores the ten seconds prior to and after a collision registered by the 3-axis G-Sensor.



  • Automatic Switch between Parking and Continuous Recording Modes
    Parking Surveillance Mode

    The X300 supports parking surveillance mode which monitors your vehicle when its ignition is off. A combination of motion detection and impact monitoring is utilized to secure your unattended vehicle against common hit-and-run incidents during your absence.

    * Automatic switching mode feature is enabled with optional hardwiring cable installation. Professional installation is highly recommended.
  • Manual Recording
    Manual Recording

    Similar to a video camera, you can use Manual Recording Mode to capture events that occurs in front of your vehicle whether or not it is involved. Use this feature to capture all significant moments such as a friendly deer approaching your vehicle or a dangerous road rage scenario as useful evidence.

Recording Duration

The following chart is an approximation of recording duration in accordance to the video quality and the capacity of the Micro SD memory card. Actual recording times may vary.

Recording Duration
Video Quality Full HD 30fps Full HD 15fps HD 30fps HD 15fps
Capacity 16 GB 94 min 94 min 140 min 204 min
32 GB 202 min 202 min 300 min 439 min
* THINKWARE DASH CAM X300 supports a Micro SD memory card up to 32GB.
* Micro SD Memory Cards are considered consumable parts and its life may vary based on user conditions. It carries a six-month warranty.

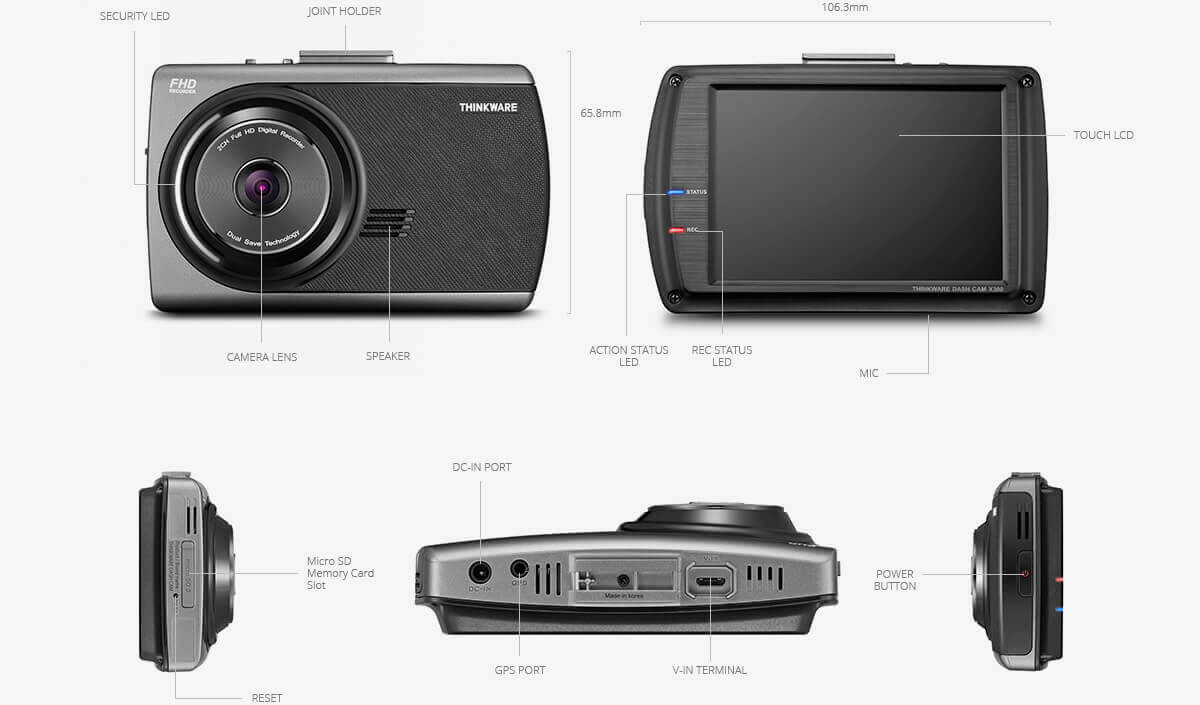

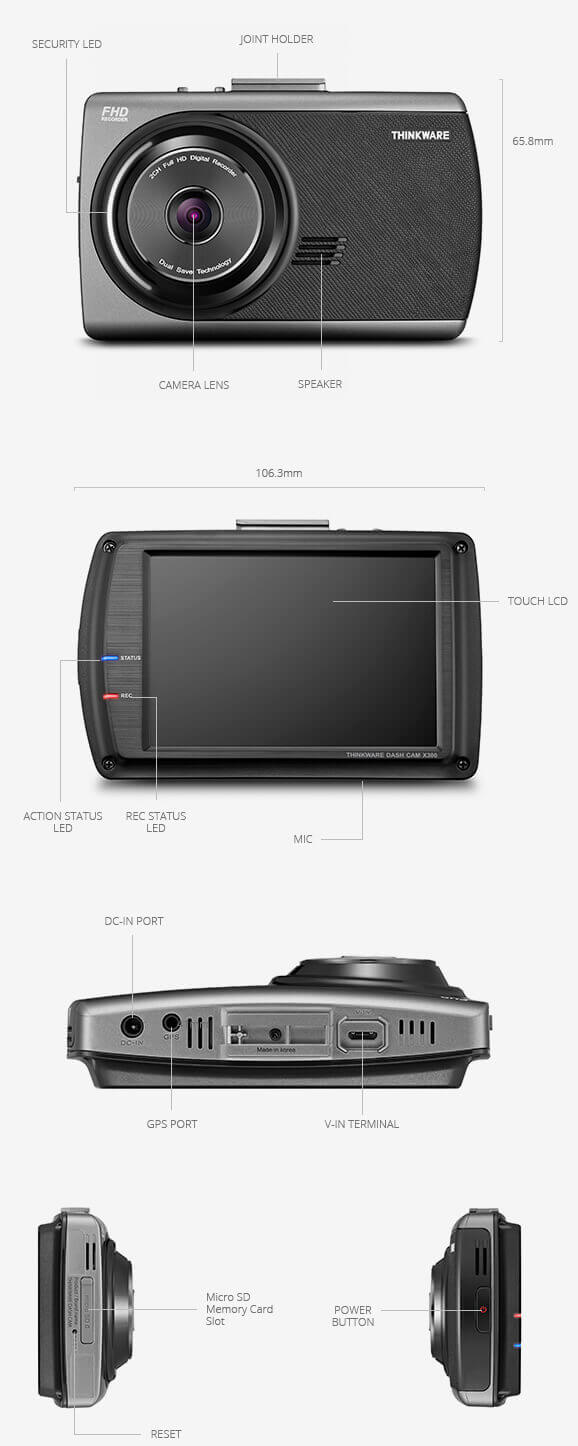

INTUITIVE INTERFACE

The button layout and cable ports of THINKWARE DASH CAM X300 are designed for easy operation with maximum convenience. With its intuitive design, anyone can figure out and control the X300 with ease.

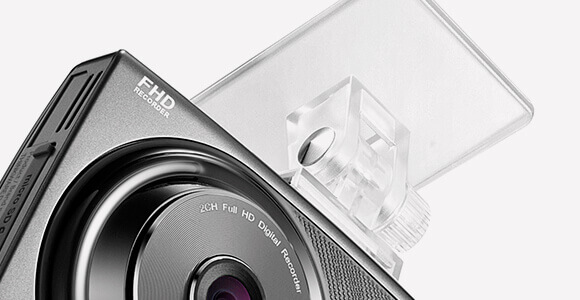

Easy Secure Mounting
Anti-Vibration Mounting

The compact 3M tape adhesive mount of the X300 eliminates vibration and windshield glare, as an effective replacement for bulky suction cup which often obstructs driver’s view of the road.

Self-Protection Shutdown against High Temperature
Thermal Self-Protection

In case of intense heat, the specially designed heat discharge construction and the built-in thermal sensor enables the X300 to automatically turn off to prevent overheating, protecting the device as well as its stored data.

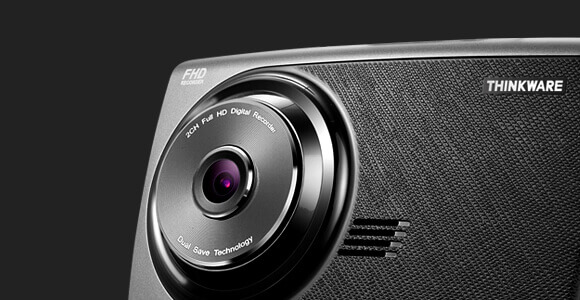

Fail-Safe Recording
Fail-Safe Recording

In the event the power gets disconnected after an accident, fail-safe recording of the X300 activates the Super Capacitor for backup power to ensure safe storage of any recording in progress; so you can be assured that your valuable data will be securely stored under any circumstances.

PRODUCT SPECIFICATIONS

PRODUCT SPECIFICATIONS PRODUCT SPECIFICATIONS
GENERAL SPECIFICATIONS
General Specifications
Dimension 106.3 x 65.8 x 31.4 mm
4.2 x 2.6 x 1.23 inches
Weight 150g
0.33lbs
Package Main Dash Cam Unit, Mount with 3M tape (1ea), Car Charger, Adhesive Cable Holder (5ea), MicroSD memory card with adapter(consumable),
USB MicroSD card reader, Quick Start Guide/Warranty/User Manual (stored in the MicroSD card)
DETAILED SPECIFICATIONS
Detailed Specifications
Camera 2.0M Pixels, 1/2.7" (CMOS)
Display Panel 3.5" TFT LCD (480x320)
Viewing Angle Approximately 146° (diagonally)
Video Full HD (1980X1080), HD (1280X720) for rear view camera when connected
Capacity MicroSD Card 8GB/16GB/32GB Class 10
Recording Modes Continuous Recording Mode, Incident RecordingMode, Manual Recording Mode, Parking Surveillance Recording Mode, Capturing Still Image, Audio Recording
Acceleration Sensor 3-Axis Acceleation G-Sensor (3D, ±4G)
GPS External GPS Receiver
Power Input Voltage: DC 12/24V (Max 35V), Power Cable Port x 1(3.5pi) / Power Consumption: 5.3W(mean) - 2ch,30fp , 3.5W(mean) - 1ch,30fp / Super Capacitor
Interface 1 x Video-IN (microUSB), 1 x External GPS port (2.5pi)
ETC Front Security LED / Operation Status LED / Recording Status LED
* This product is intended to record while vehicle is in motion.
Certain features may not be supported under specific driving, vehicle, and navigation conditions while being subject to change through firmware updates for assurance of quality and safety. Furthermore, recording may not be available under specific user environment and should be used for reference purposes only.
WHY YOU SHOULD CHOOSE THINKWARE DASH CAM

CHOOSE
THINKWARE DASH CAM

  • Rigorous Quality Control and Testing
  • World's First Design Award Grand Slam
  • Superb Video Quality
  • No. 1 Brand in the Market
