THINKWARE DASH CAM H100

720P HD / 30fps

    • High Definition Video Quality

      With a 1280*720p HD camera, the H100 records videos with crystal clear resolution capturing crucial details of any incidents on and off the road.

      Recording at 30fps without dropping a single frame, you can rely on the H100 to securely store every moment of your commute – whether it be a range of traffic incident or a sudden hit-and-run.

      video size img video size img
      • 140˚ Wide Angle View

        140˚ Wide Angle View

        The H100 has a 140˚ wide viewing angle for maximum visibility, capturing a wider view of the roads with effectively reduced blind spots.

      • 2M Pixel High-Resolution Image Sensor

        2M Pixel High-Resolution Image Sensor

        The 2M pixel high-resolution CMOS sensor of the H100 significantly improves the video quality even at night, ensuring crystal clear and sharp resolution of all images captured.

      • Access Driving Information through External GPS

        Comprehensive Driving Data through External GPS

        With GPS, THINKWARE DASH CAM H100 records driving speed of your vehicle and locates its position as well as routes on the map. You can retrieve the speed and direction of your vehicle at the moment of collision along with the direction and severity of the collision. This information allows you more accurate assessment of the situation. You can also track the record of your journey you have taken with your friends and family. This feature can be also useful for novice drivers who are just learning to drive as it may help them select their most familiar and regular routes for more confident driving. The features mentioned above are available only for selected models with the built-in GPS or using the GPS accessory sold separately.

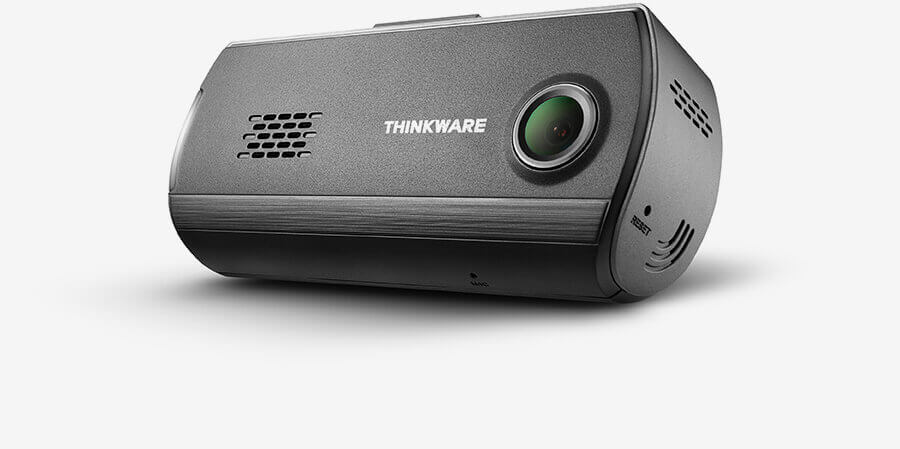

    • Various Autonomous Recording Modes

      The THINKWARE DASH CAM H100 supports various recording modes which you can choose from according to your needs: Continuous Recording, Incident Recording, Motion Detection Recording, and Manual Recording.

      Various Recording Modes and Automatic Switch between Modes
      • Continuous Recording Mode
        Continuous Recording Mode

        This mode is activated automatically when you start the vehicle engine. Recorded videos are saved in one-minute segments with an auto-looping mechanism.

      • Incident Recording Mode
        Incident Recording Mode

        The Active Impact Monitoring System automatically stores the ten seconds prior to and after a collision registered by the 3-axis G-Sensor.



      • Automatic Switch between Parking and Continuous Recording Modes
        Parking Surveillance Mode

        The X100 can support parking surveillance mode to monitor your vehicle when its ignition is off. A combination of motion detection and impact monitoring is utilized to secure your unattended car against common hit-and-run incidents during your absence.

        * Automatic switching mode feature is enabled with optional hardwiring cable installation. Professional installation is highly recommended.
      • Manual Recording
        Manual Recording

        Similar to a video camera, you can use Manual Recording Mode to capture events that occur in front of your vehicle regardless of its involvement with the incident. Use this feature to capture all your significant moments such as a friendly deer approaching your car, or a dangerous road rage scenario as useful evidence.

    • Recording Duration

      The following chart is an approximation of recording duration in accordance to the video quality and the capacity of the Micro SD memory card. Actual recording times may vary.

      Recording Duration
      Video Quality HD 30fps HD 15fps
      Capacity 16 GB 222 min 389 min
      32 GB 451 min 790 min
      * THINKWARE DASH CAM H100 supports a Micro SD memory card up to 32GB.
      * Micro SD Memory Cards are considered consumable parts and its lifetime may vary depending on user conditions. It carries a six-month warranty.

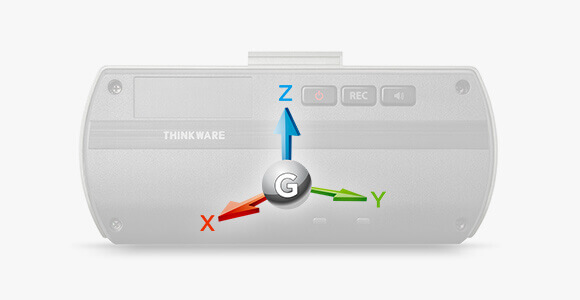

      • Accelerometer G-Sensor

        Accelerometer G-Sensor

        With 3-axis G-Sensor recording the gravity-sensing information, you can easily find out the movement of an axle and the severity of impact caused by a collision.

      • Easy-to-Use, Highly Functional Viewer

        Easy-to-Use, Highly Functional Viewer

        You can access and view the recorded video footage using THINKWARE DASH CAM PC Viewer. It supports both PC and Mac platforms allowing you to download the video files and access the information of your driving history: your route and speed etc. Configuring the settings of THINKWARE DASH CAM H100, formatting memory card, and updating firmware can be all done with just a few simple clicks.

    • Easy-to-Use Interface

      The THINKWARE DASH CAM H100 has simple, user-friendly button layout allowing you to operate the device easily without confusion.

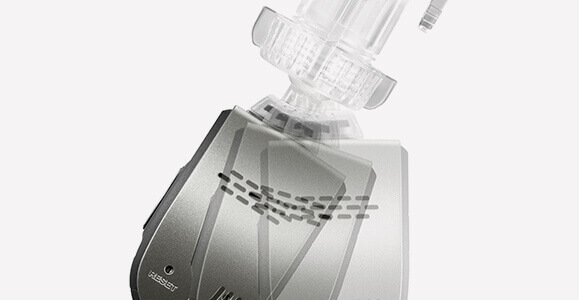

      • Easy Secure Mounting
        Anti-Vibration Secure Mounting

        The compact 3M tape adhesive mount eliminates vibration, windshield glare as an effective replacement for bulky suction cup which often obstructs driver’s view of the road.

      • Self-Protection Shutdown against High Temperature
        Thermal Self-Protection

        With its specially designed heat discharge construction and the built-in thermal sensor, the H100 automatically turns off and prevent device overheating in case of intense heat, protecting itself and the stored data.

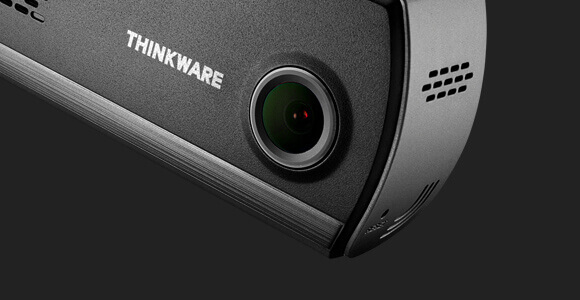

      • Fail-Safe Recording
        Fail-Safe Recording

        In the event that the power gets disconnected after an accident, the H100’s fail-safe recording uses the Super Capacitor for backup power to ensure safe storage of any recording in progress; so you can be assured that your valuable data will be securely stored under any circumstances.

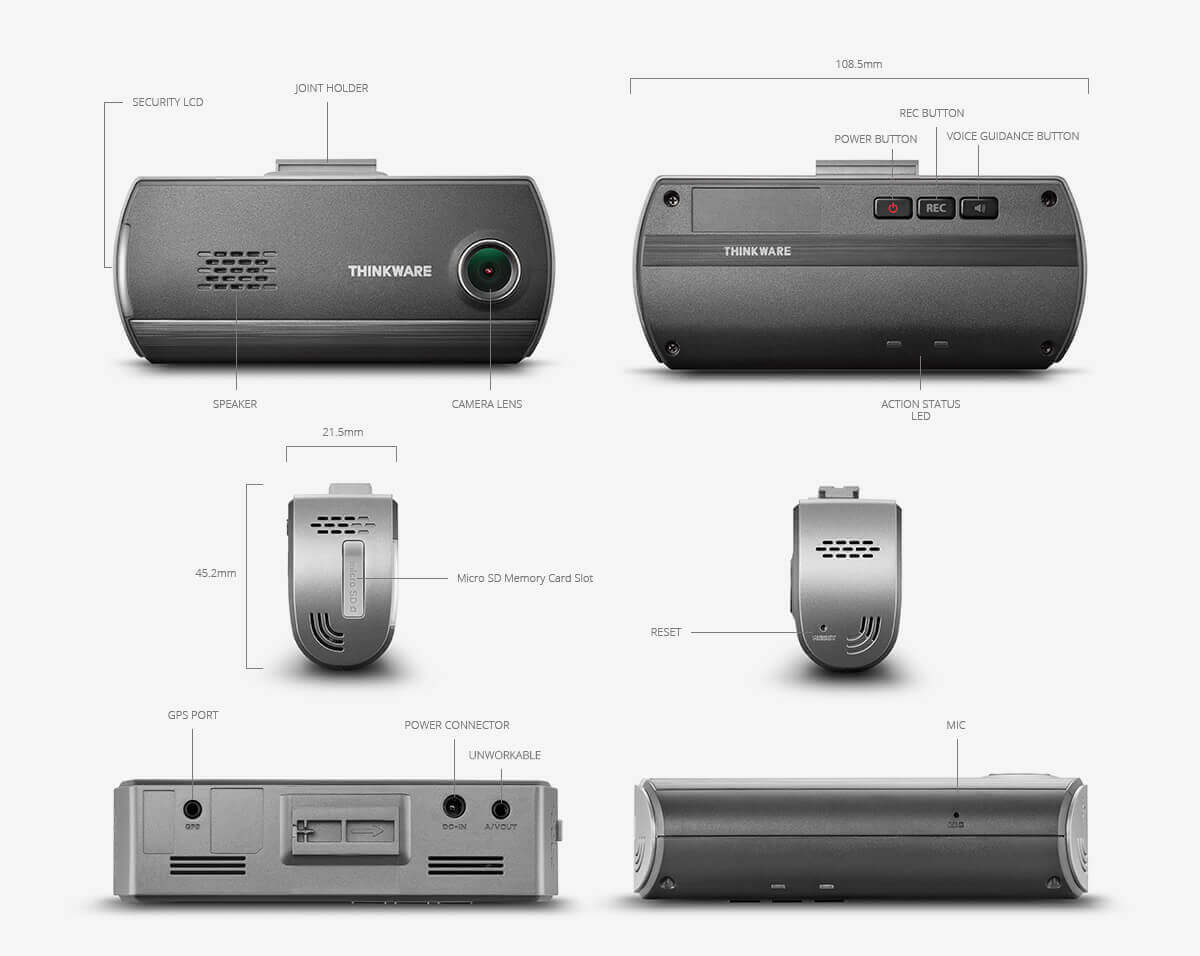

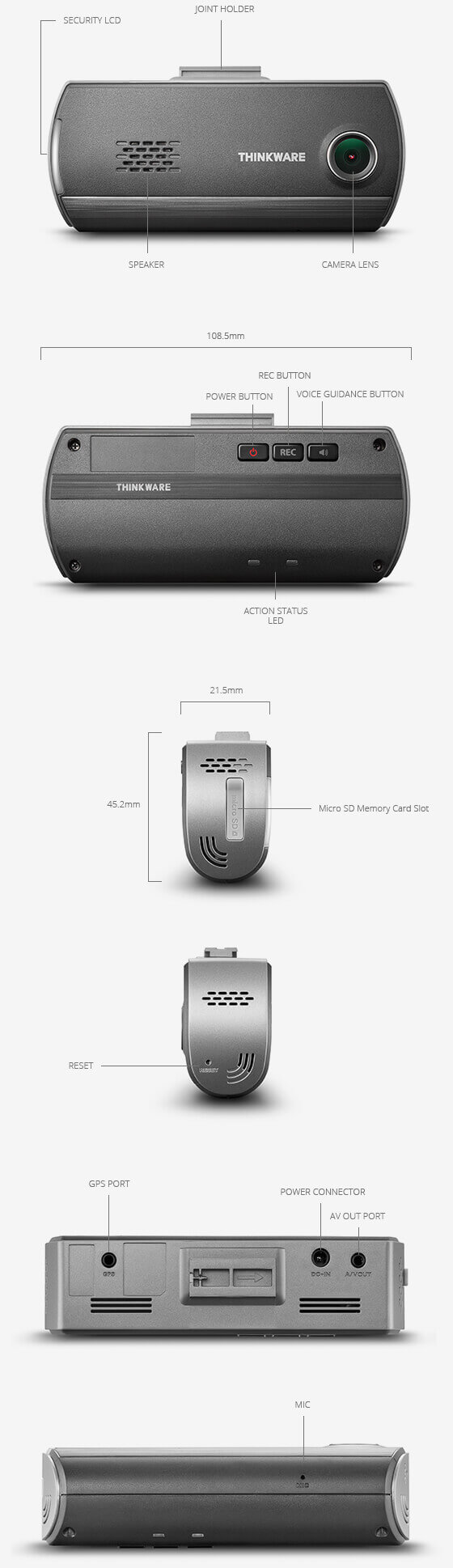

    • PRODUCT SPECIFICATIONS

      PRODUCT SPECIFICATIONS PRODUCT SPECIFICATIONS
      GENERAL SPECIFICATIONS
      General Specifications
      Dimension 108.5 x 45.2 x 26 mm
      4.3 x 1.8 x 1.0 inches
      Weight 75g
      0.17lbs
      Package Main Dash Cam Unit, Mount with 3M tape (1ea), Car Charger, Adhesive Cable Holder (5ea), MicroSD memory card with adapter (consumable),
      USB MicroSD card reader, Quick Start Guide/Warranty/User Manual (stored in the MicroSD card)
      DETAILED SPECIFICATIONS
      Detailed Specifications
      Camera 2.0 M Pixel, 1/3.2" (CMOS)
      Viewing Angle Approximately 140° (diagonally)
      Video HD (1280X720)
      Capacity MicroSD Card 8GB/16GB Class 6 or higher
      Recording Mode Continuous Recording Mode, Incident RecordingMode, Manual Recording Mode, Parking Surveillance Recording Mode, Capturing Still Image, Audio Recording
      Acceleration Sensor 3-Axis Acceleation G-Sensor (3D, ±4G)
      GPS External GPS Receiver
      Power Input Voltage: DC 12/24V (Max 35V), Power Cable Port x 1(3.5pi) / Power Consumption: 3.1W(mean) / Super Capacitor
      Interface 1 x Video-OUT (2.5pi), 1 x External GPS port (2.5pi)
      ETC Front Security LED / Operation Status LED
      * This product is intended to record while vehicle is in motion.
      Certain features may not be supported under specific driving, vehicle, and navigation conditions while being subject to change through firmware updates for assurance of quality and safety.
      Furthermore, recording may not be available under specific user environment and should be used for reference purposes only.
